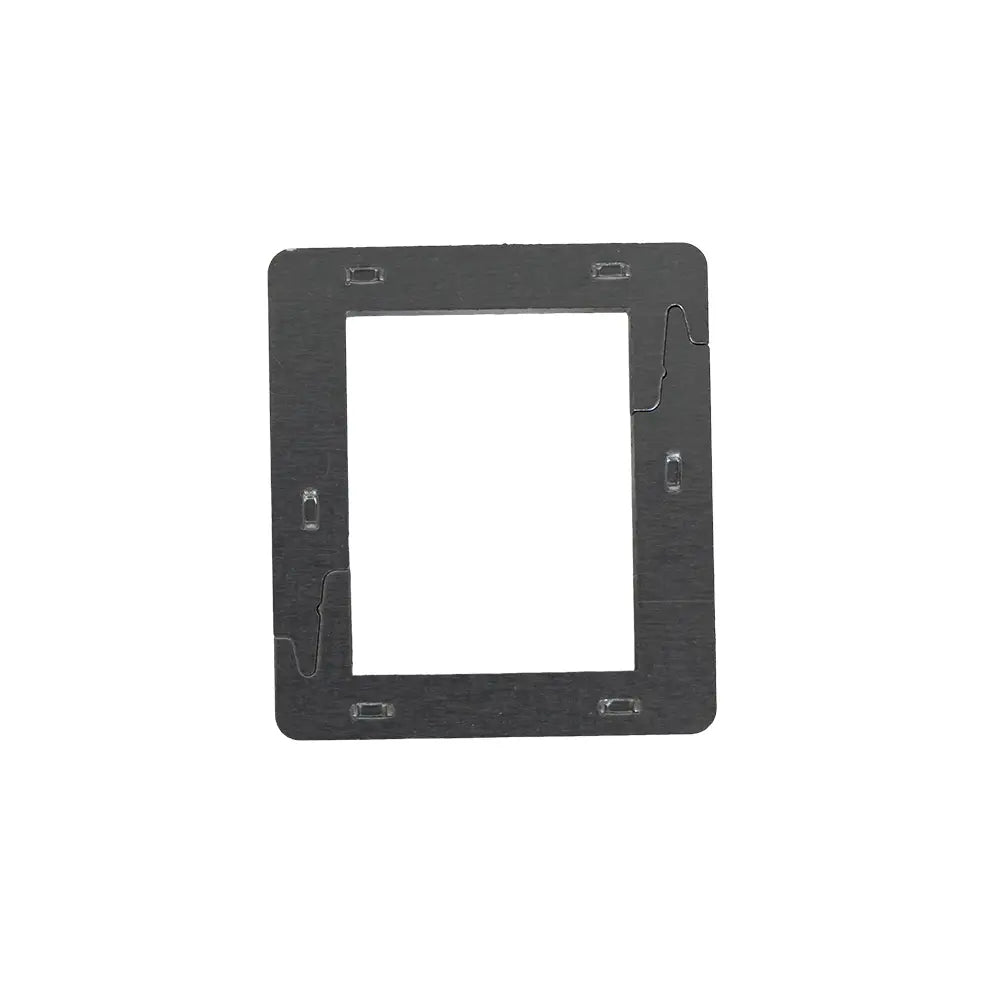

Rectangular laminated electrical steel cores for inductive devices, power-conversion equipment and specialized magnetic circuits. Window size, outer profile, holes, notches, material and stack configuration can be customized.
Product capabilities
- Custom window and outer dimensions
- Holes, notches and locating features
- Loose laminations or core stacks
- Material and stack-height control
Typical applications
- Inductive devices
- Power-conversion equipment
- Custom magnetic circuits
Information required for quotation
- Core drawing or sample
- Material and thickness
- Stack and assembly format
- Quantity and inspection requirements
Dimensions, material, tolerances, magnetic requirements, inspection criteria and delivery format are confirmed against the approved drawing or sample before production.
