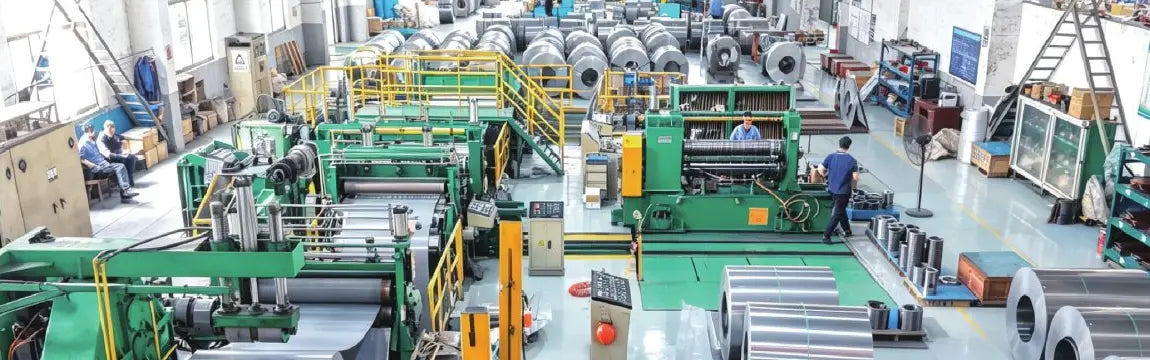

01 / MATERIAL
Slitting & Blank Preparation
Coil preparation and classified storage support regular and drawing-based material routes.
MANUFACTURING CAPABILITIES
How does Shuaijin manufacture drawing-based motor cores?
The published route connects material preparation, precision stamping, motor-core tooling and die development, annealing where required, assembly and inspection. The final route is confirmed against each drawing and order.

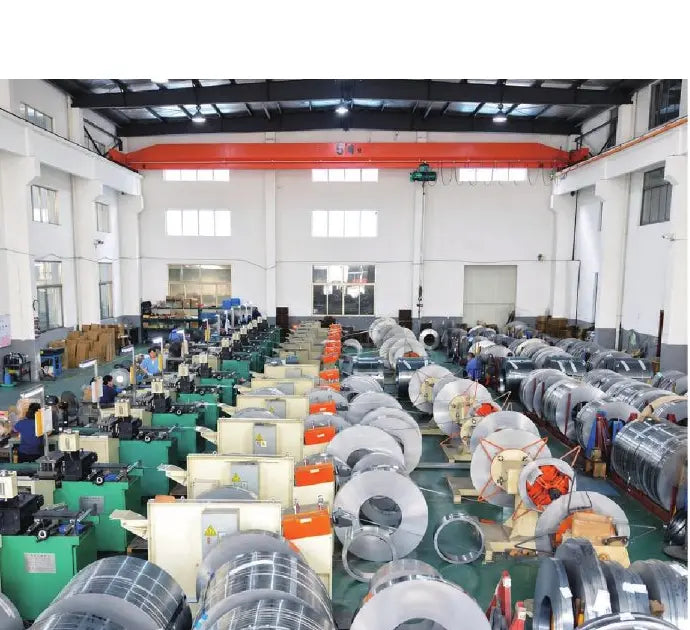

02 / STAMPING
Precision Stamping
High-speed stamping lines support standard and non-standard lamination geometries.

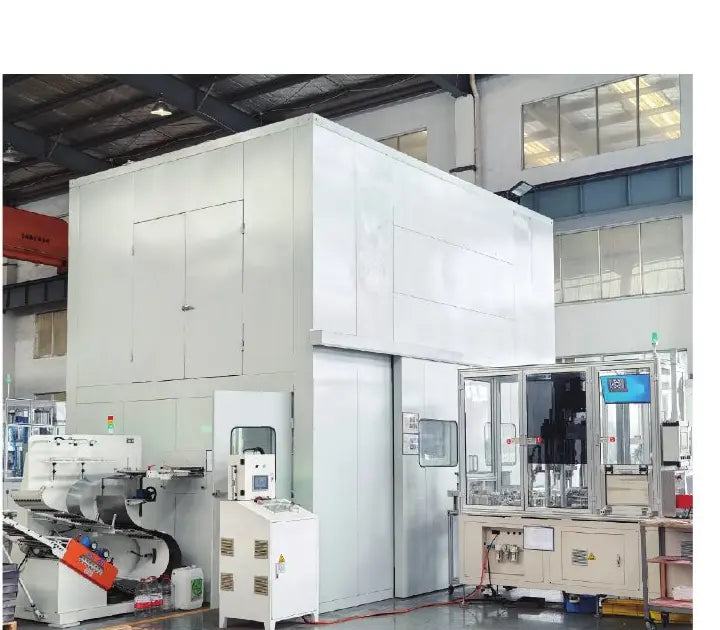

03 / TOOLING
Tooling & Die Development
Drawing review, die design, fabrication, tryout and maintenance support the project route.

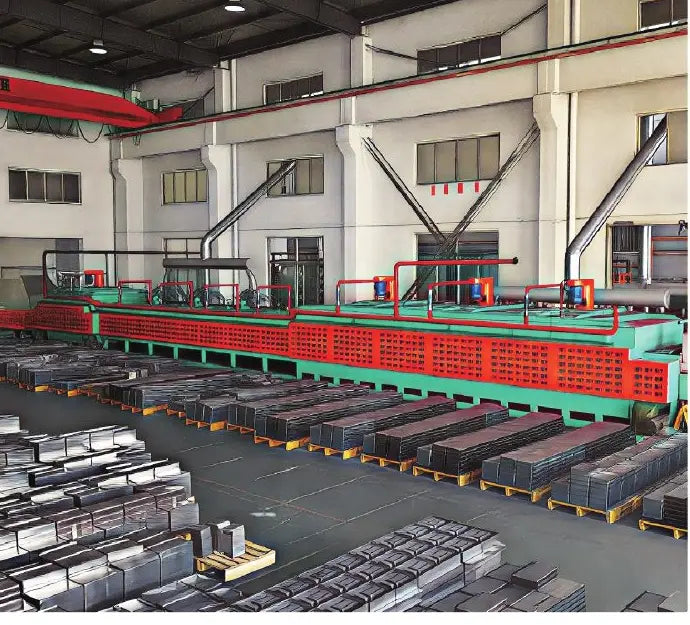

04 / HEAT TREATMENT
In-house Annealing
Annealing is applied when the agreed material and production route requires it.

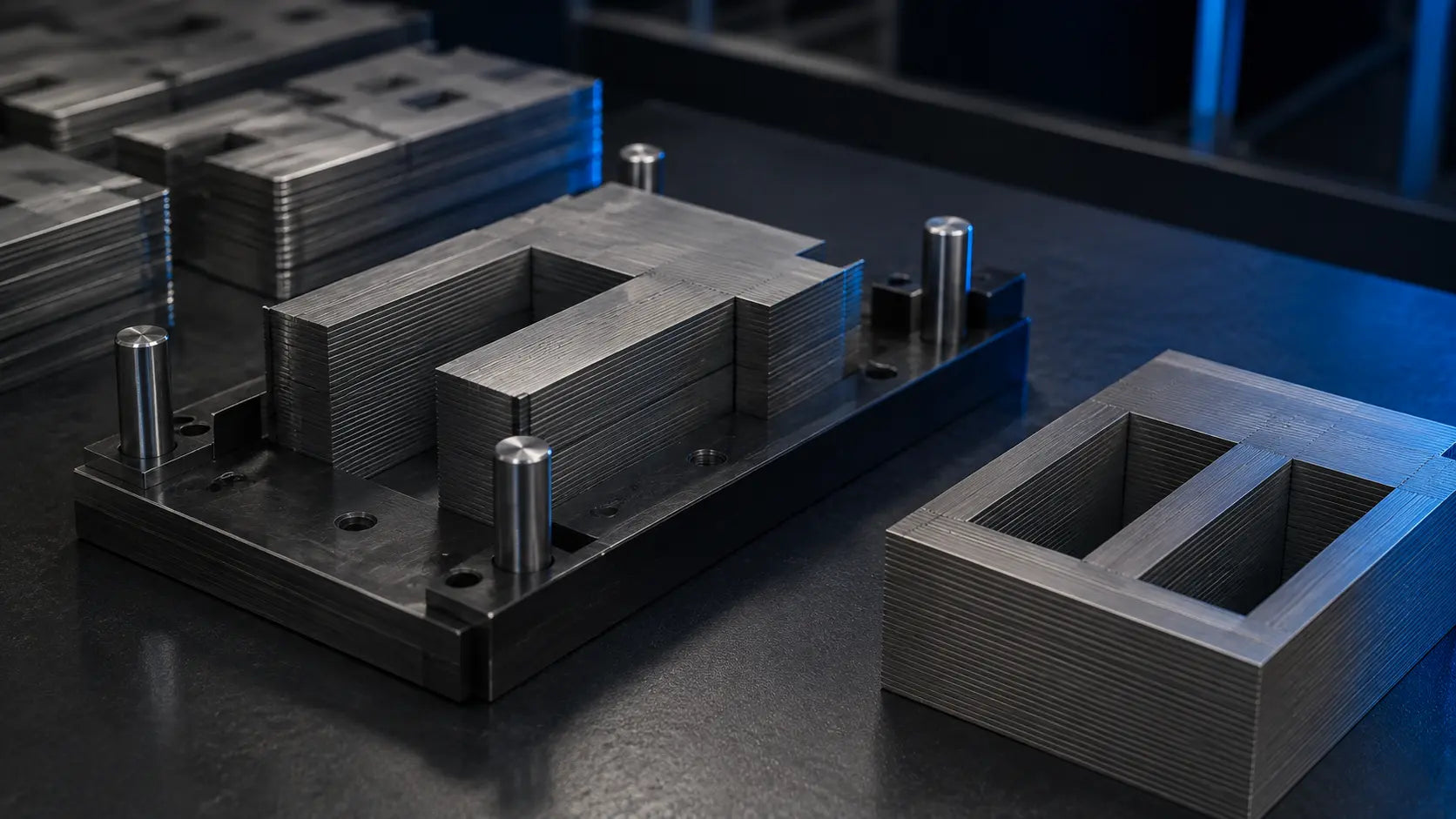

05 / ASSEMBLY
Stacking & Assembly
Loose-piece, stack and assembly requirements are defined from the drawing and delivery format.

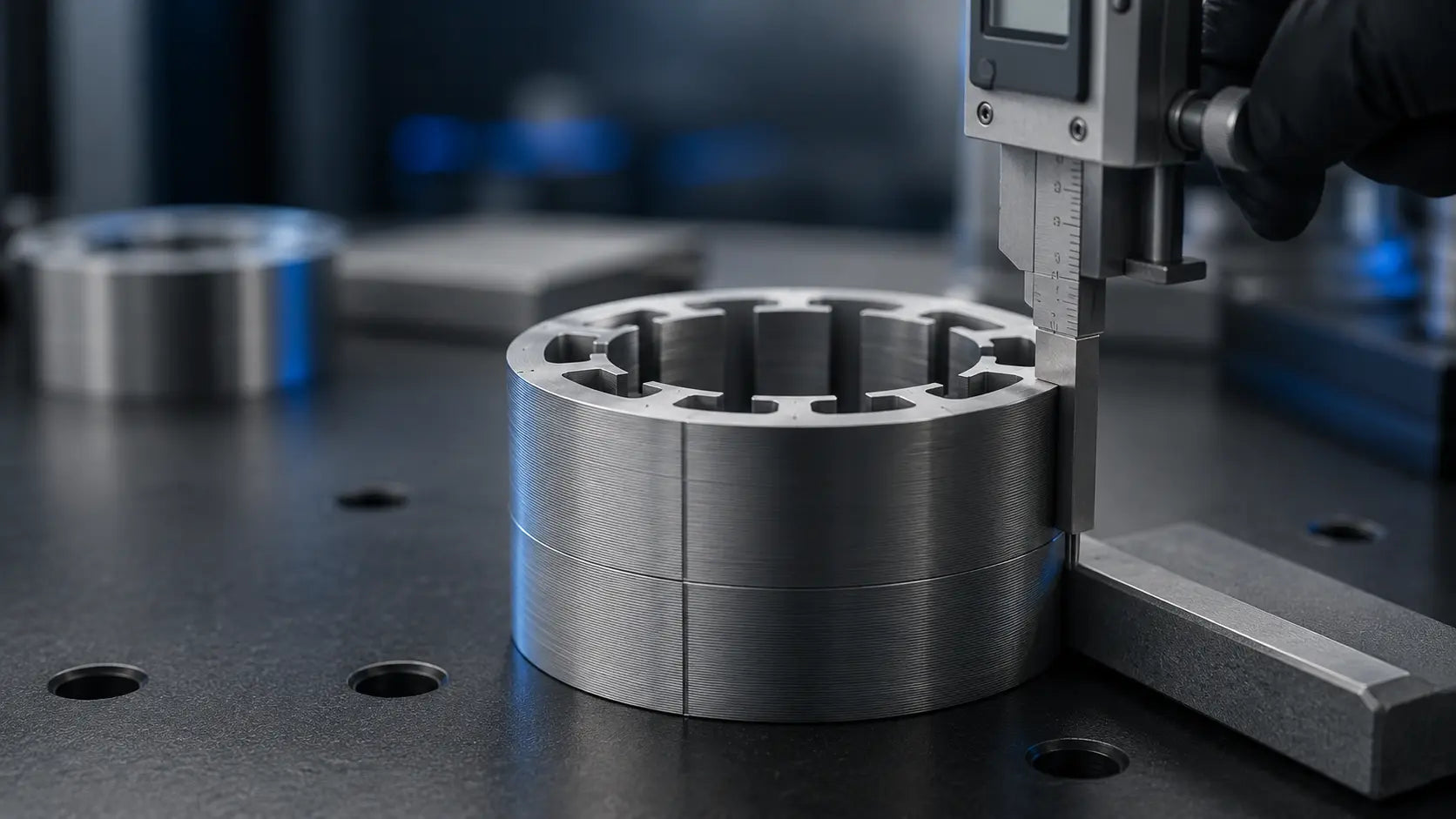

06 / INSPECTION
Inspection & Release
Dimensions, burr, appearance, stack height and agreed project checks are linked to approval and production release.
From buyer input to repeat production.
- 01
Drawing review
Geometry, material, tolerances, application and quantity.
- 02
Process & tooling plan
Manufacturing route, die plan and inspection alignment.
- 03
Sample approval
Trial parts, measurements and buyer approval.
- 04
Production release
Controlled batch production, records, packing and delivery.
NEXT STEP
START AN RFQ ↗Define the requirement before quotation.
Send the available drawing or sample, material, critical tolerances, expected quantity, application and destination.
