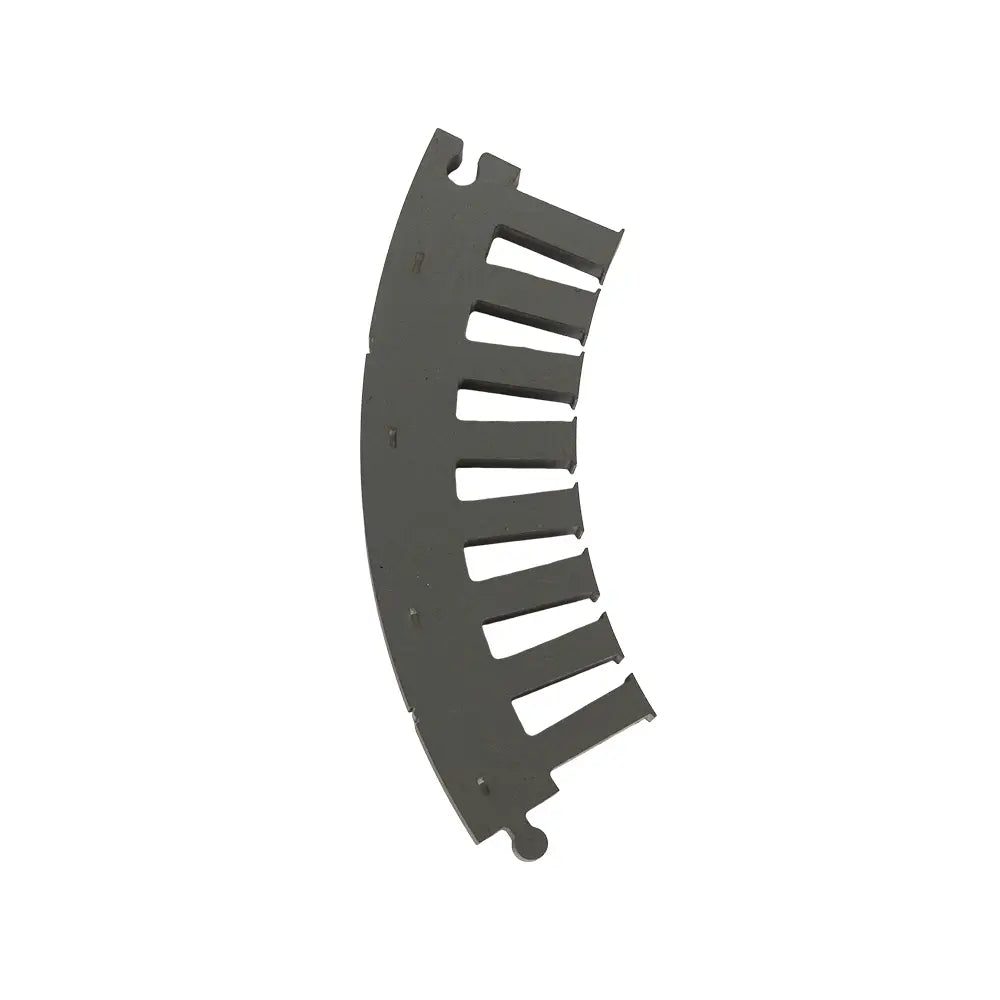

Curved electrical steel stator segments for segmented motor-core structures. Tooth and slot geometry, arc angle, mounting holes, locating features, material grade and thickness are produced to the approved drawing.
Product capabilities
- Precision arc and segment angle
- Custom tooth and slot geometry
- Loose segments or stacked sections
- Locating and mounting features
Typical applications
- Segmented stators
- Large-diameter motor structures
- Special rotating equipment
Information required for quotation
- Segment drawing or sample
- Material and thickness
- Stacked or loose delivery
- Quantity and inspection plan
Dimensions, material, tolerances, magnetic requirements, inspection criteria and delivery format are confirmed against the approved drawing or sample before production.
